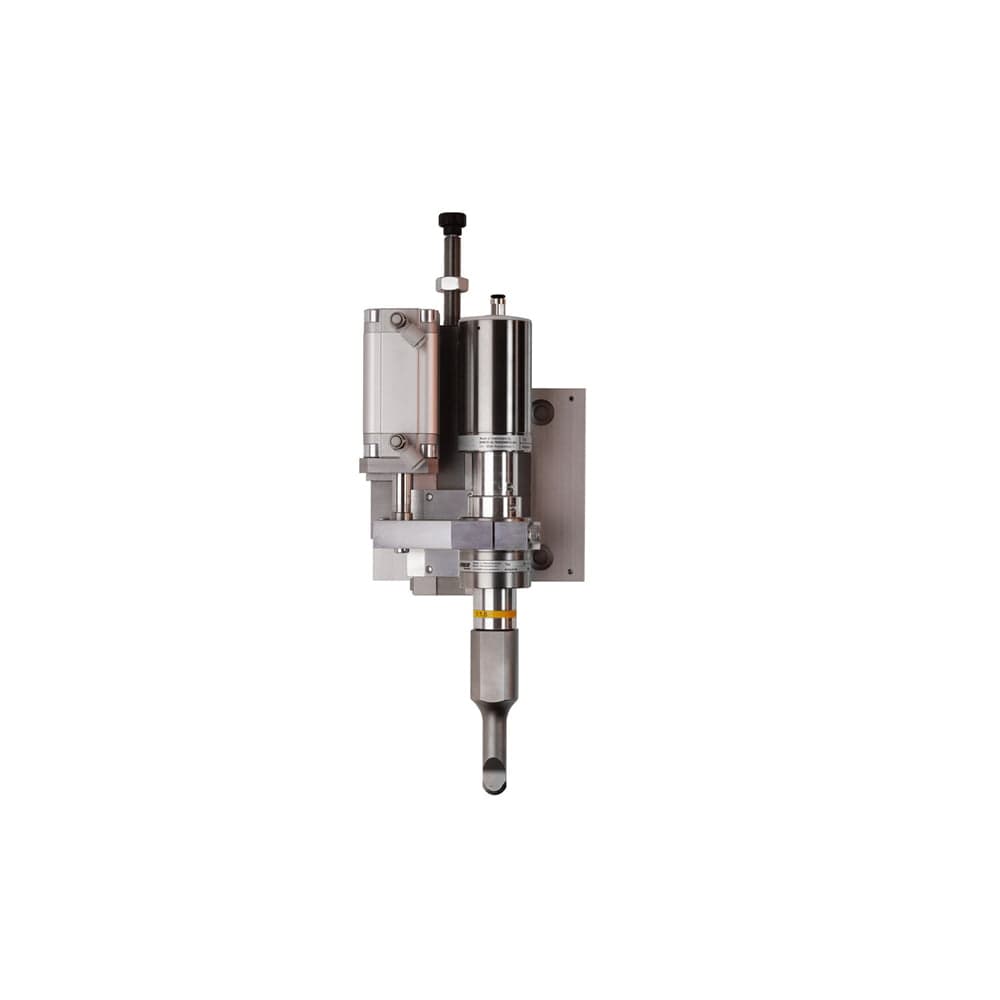

CH 35 Cutting Head
35 kHz cutting head for building ultrasonic cutting into your own equipment.
The CH 35 is the integration route to ultrasonic cutting: a 35 kHz cutting head engineered for mounting into cutting tables, converting lines and special machines, delivering clean, sealed cuts in synthetic materials at production speed.
- Operating frequency
- 35 kHz
- Weight
- 1.4 kg
- Cutting power
- Pretensioning force adjustable using knurled thumb screw
- Tool holder
- Cutting wheel (28 mm) fixed with screws
Defining features
- Designed for integration into cutting rails as well as on weaving machines
- Air cooling optionally retrofit
- Ideal for continuous cutting
- Designed for integration into special purpose machines
Technical specifications
| Operating frequency | 35 kHz |
|---|---|
| Weight | 1.4 kg |
| Cutting power | Pretensioning force adjustable using knurled thumb screw |
| Tool holder | Cutting wheel (28 mm) fixed with screws |
