35 kHz01 / 02Click to expand ⤢Ultrasonic cutting station · Ultrasonic Cutters

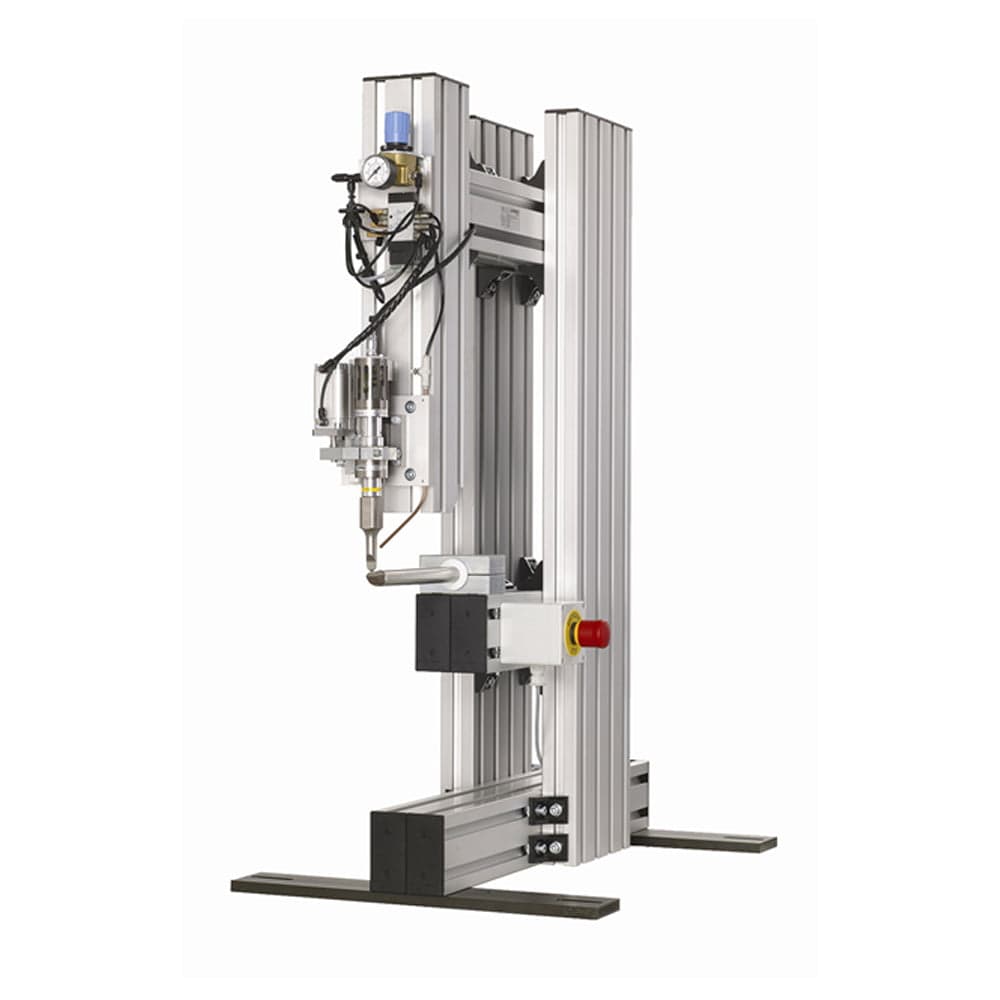

CS 35 Cutting Station
Complete 35 kHz cutting station for textiles, films, rubber and food.
The CS 35 is a complete ultrasonic cutting workstation: a 35 kHz vibrating blade that slices cleanly through synthetic fabrics, films, rubber, composites and food — sealing synthetic cut edges as it goes, with no fraying and minimal deformation.
- Variants
- Type 3 (floor unit); Type 5 (table unit)
- Operating frequency
- 35 kHz
- Safety
- Maximum stroke: 6 mm adjusted
- Weight
- Type 3: 85 kg without generator; Type 5: 70 kg without generator
- Generator suitability
- SDG35-400/750
Defining features
- Ideal for the edge trimming of retro-injected fabrics
- Available as table or floor unit
- Also suitable for integration into manufacturing cells
- Rugged construction
- Made in Switzerland
Technical specifications
| Variants | Type 3 (floor unit); Type 5 (table unit) |
|---|---|
| Operating frequency | 35 kHz |
| Safety | Maximum stroke: 6 mm adjusted |
| Weight | Type 3: 85 kg without generator; Type 5: 70 kg without generator |
| Generator suitability | SDG35-400/750 |
In action

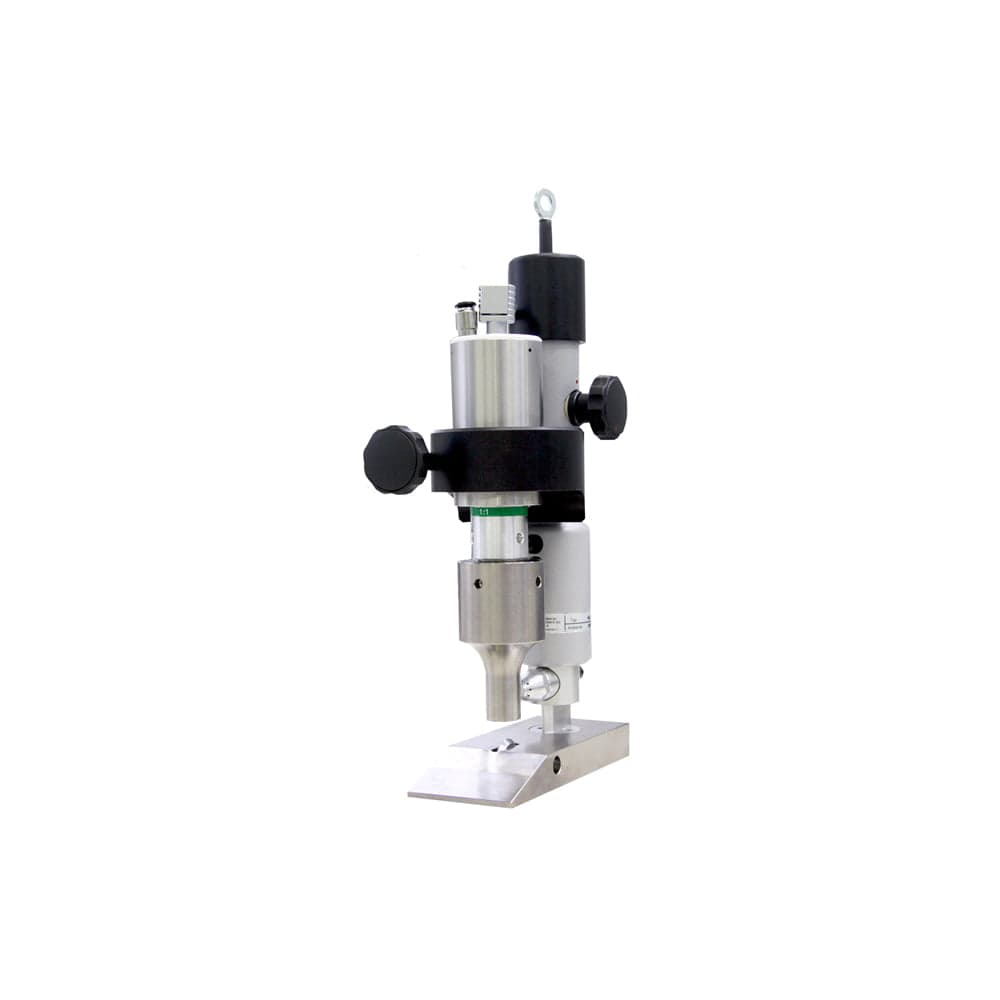

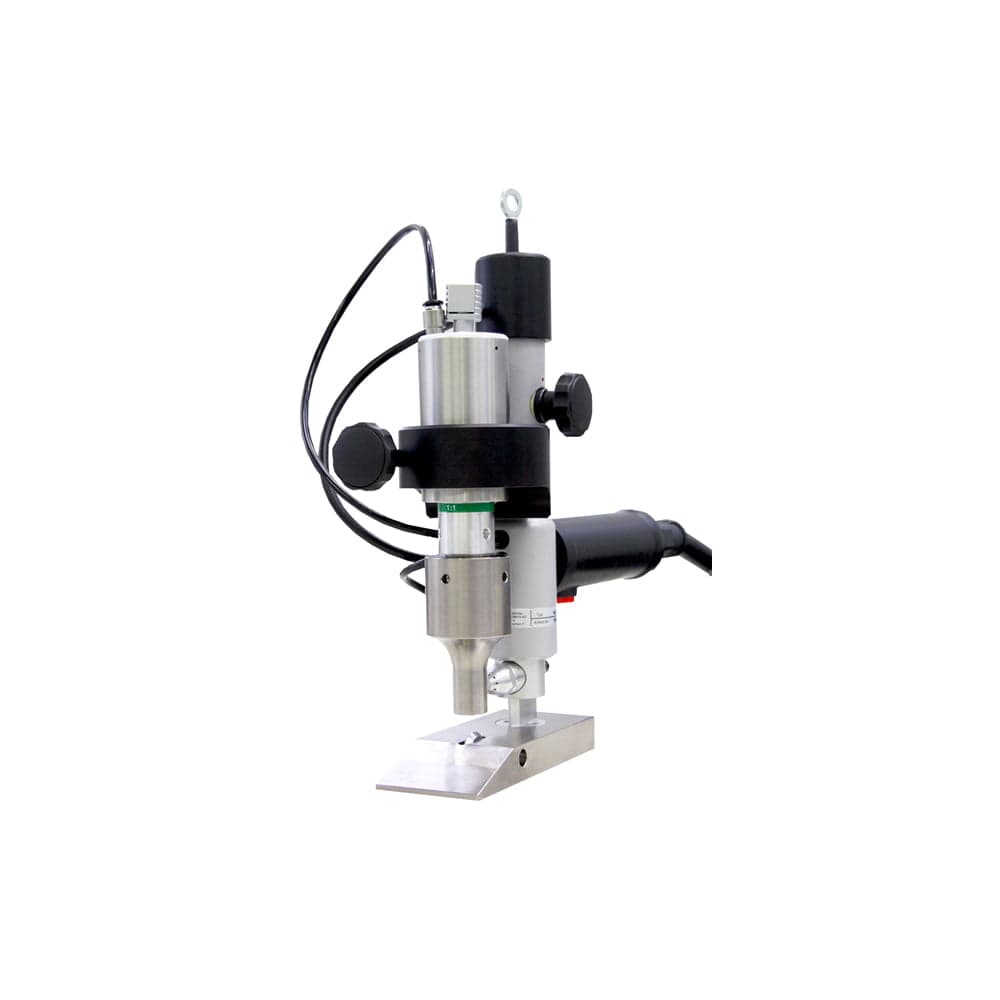

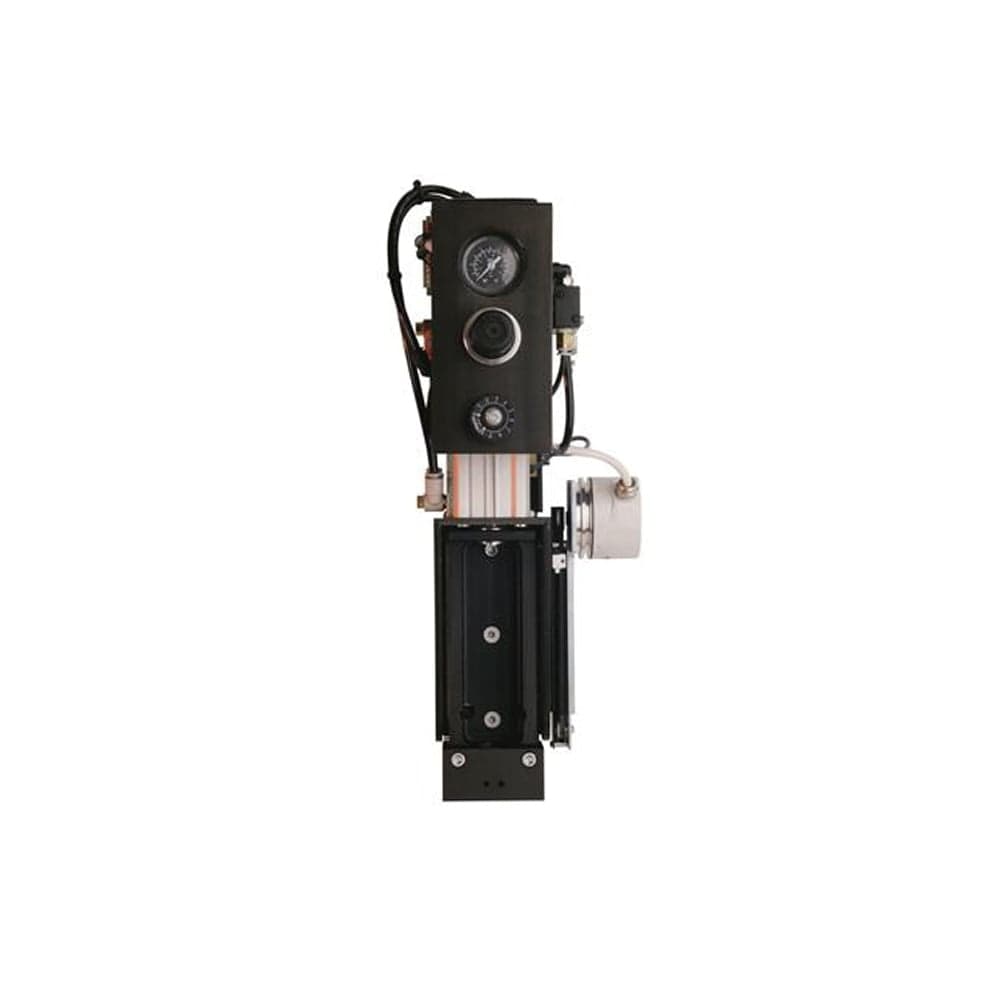

Related equipment
Applications support · New Zealand
Put the CS 35 Cutting Station on your line
Send us your part, your material and your production target. Techspan's engineers will recommend the right Rinco machine, tooling and process — with trials where it matters.
