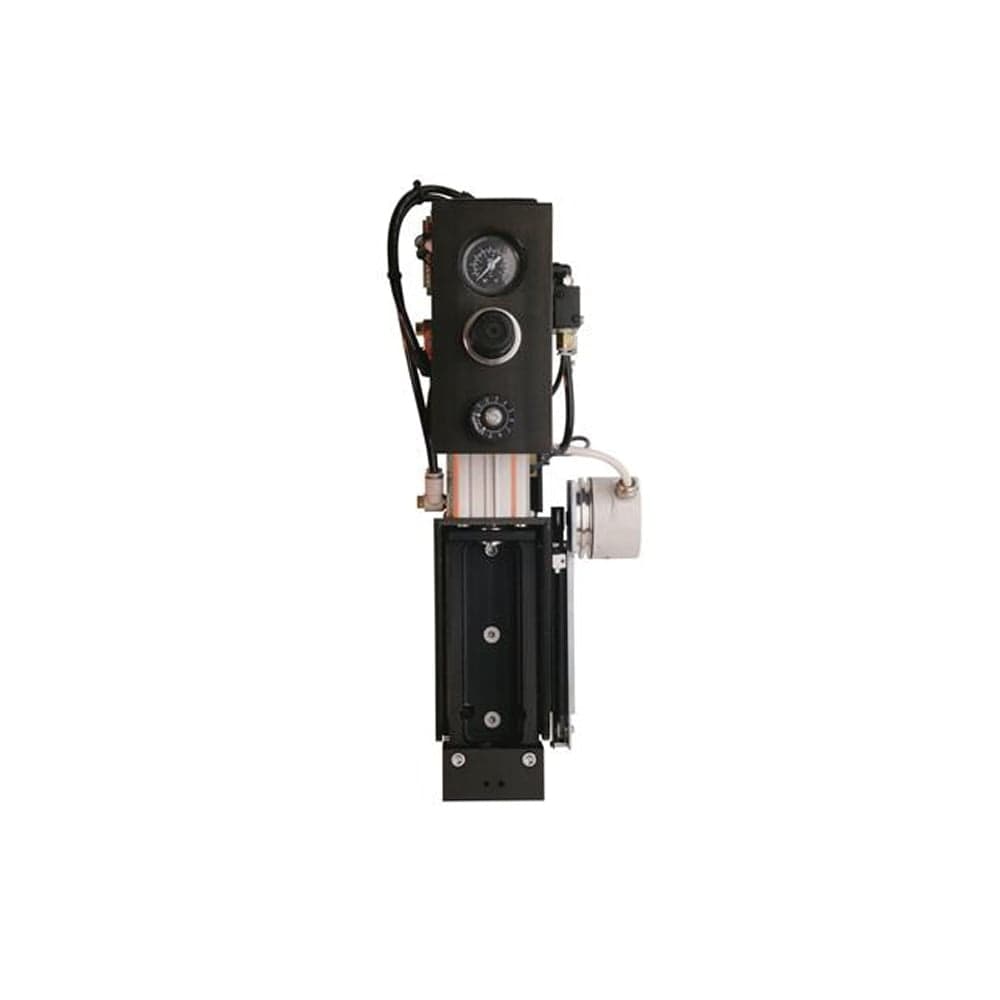

SV 35 Cutting Head
Slimline 35 kHz cut-and-seal head for converting and packaging lines.
The SV 35 cutting head brings ultrasonic cut-and-seal to converting and packaging machinery: a slim 35 kHz head that cuts synthetic webs and films cleanly while sealing the edge, built for continuous line operation.
- Operating frequency
- 35 kHz
- This actuator is used as a component in special purpose machines
- Maximum force
- 295 N at 6 bar compressed air
- Maximum stroke
- 40 mm
- Weight
- 3 kg with oscillator system, 2.3 kg without oscillator system
- Generator suitability
- SDG35-400/750, RDG35-400/750, AGM35-400/600
Defining features
- Designed for integration into cutting rails as well as on weaving machines
- Air cooling optionally retrofit
- Ideal for continuous cutting
- Designed for integration into special purpose machines
- Made in Switzerland
Technical specifications
| Operating frequency | 35 kHz |
|---|---|
| This actuator is used as a component in special purpose machines | |
| Maximum force | 295 N at 6 bar compressed air |
| Maximum stroke | 40 mm |
| Weight | 3 kg with oscillator system, 2.3 kg without oscillator system |
| Generator suitability | SDG35-400/750, RDG35-400/750, AGM35-400/600 |
