Description

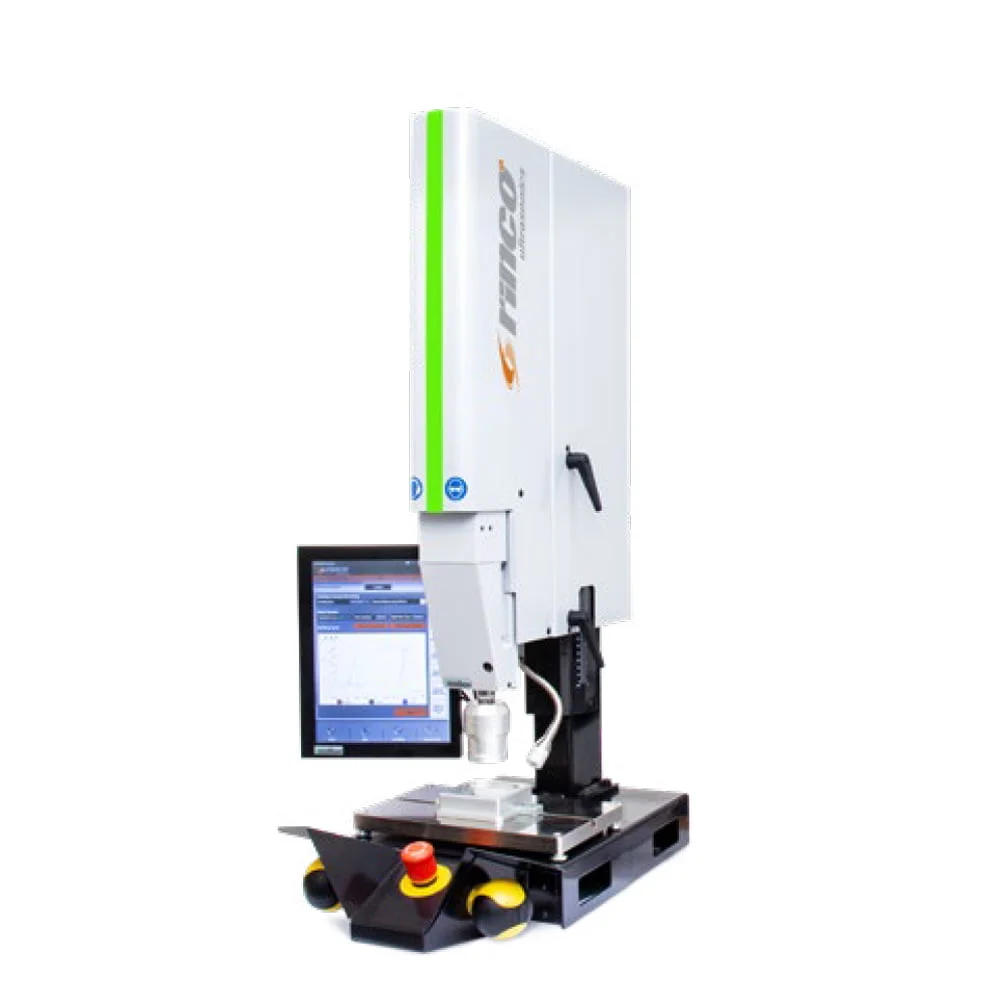

Electrical Motion 35 :
35 kHz ultrasonic welding machine is suitable for technically challenging welding applications for thermoplastic parts and for welding and cutting synthetic fabrics & textiles
Defining features:
- Electrically driven
- User-defined actuator starting position
- Fine-tuned parameter settings for welding force, speed and amplitude
- Choice of 8 welding modes
- Smelting process can be divided into up to 10 steps

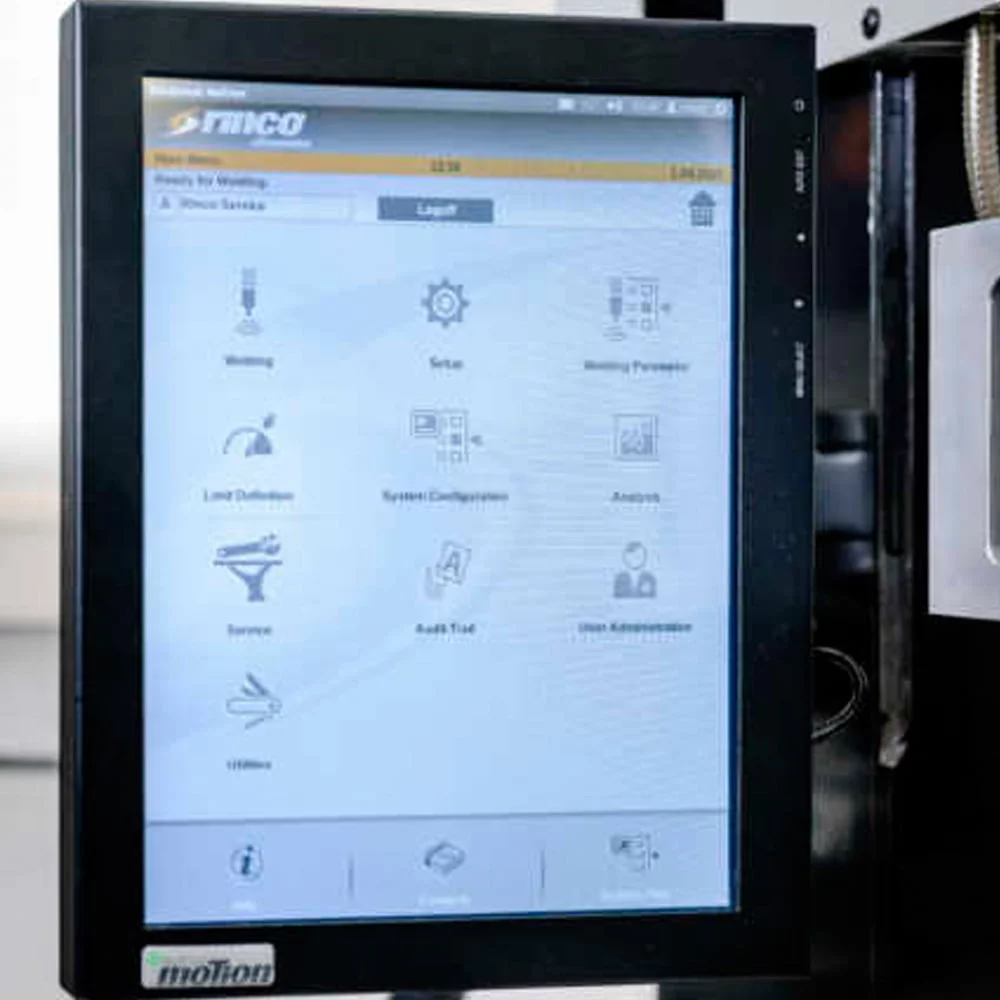

- The settings are made on a 12″ LCD swivel touch screen
- Linux Ubuntu operating system
- Both force sensor and amplitude can be calibrated
- Various interfaces incl. 3 freely programmable digital outputs
- Audit trail
- Remote access service

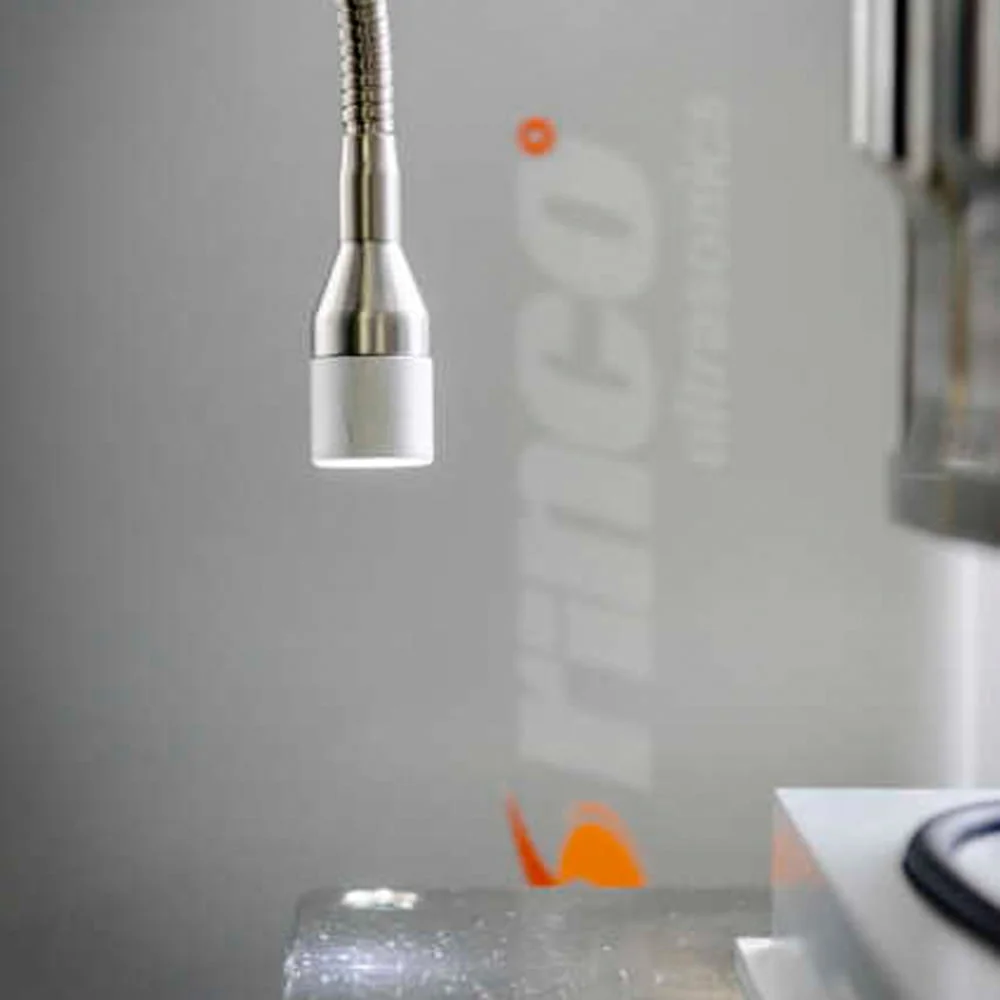

- Swivel work light

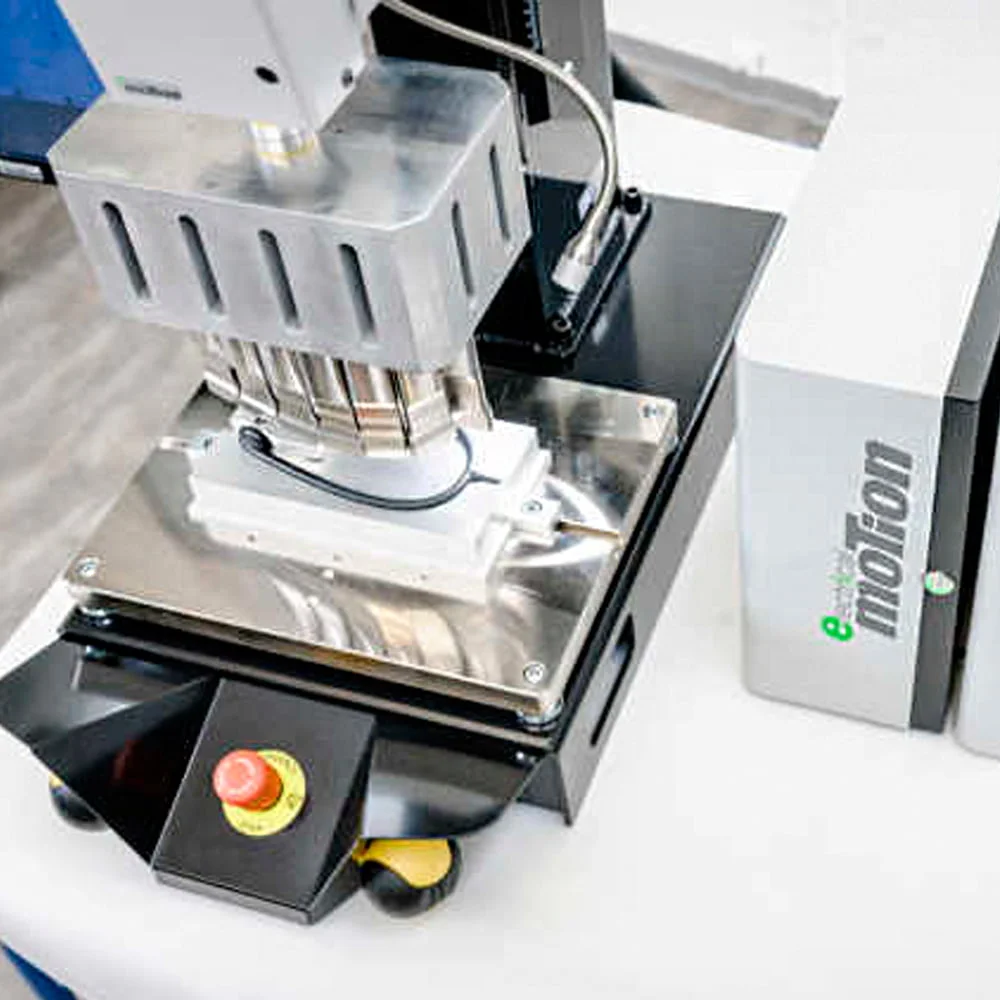

- Two-hand control with Safeballs
- Work status light on the front of the pillar
- Type-tested
- Highest safety level (PLe)
Technical Specifications:
- Operating frequency: 35 kHz
- Safety conformity: CE-compliant – meets European safety standards & norms
- Maximum force: 745 N
- Max. tool stroke: 100 mm
- Weight: Approx. 53 kg without generator and servo control unit
- Suitable Generator Type: XDG35 900 (not supplied with Press)
