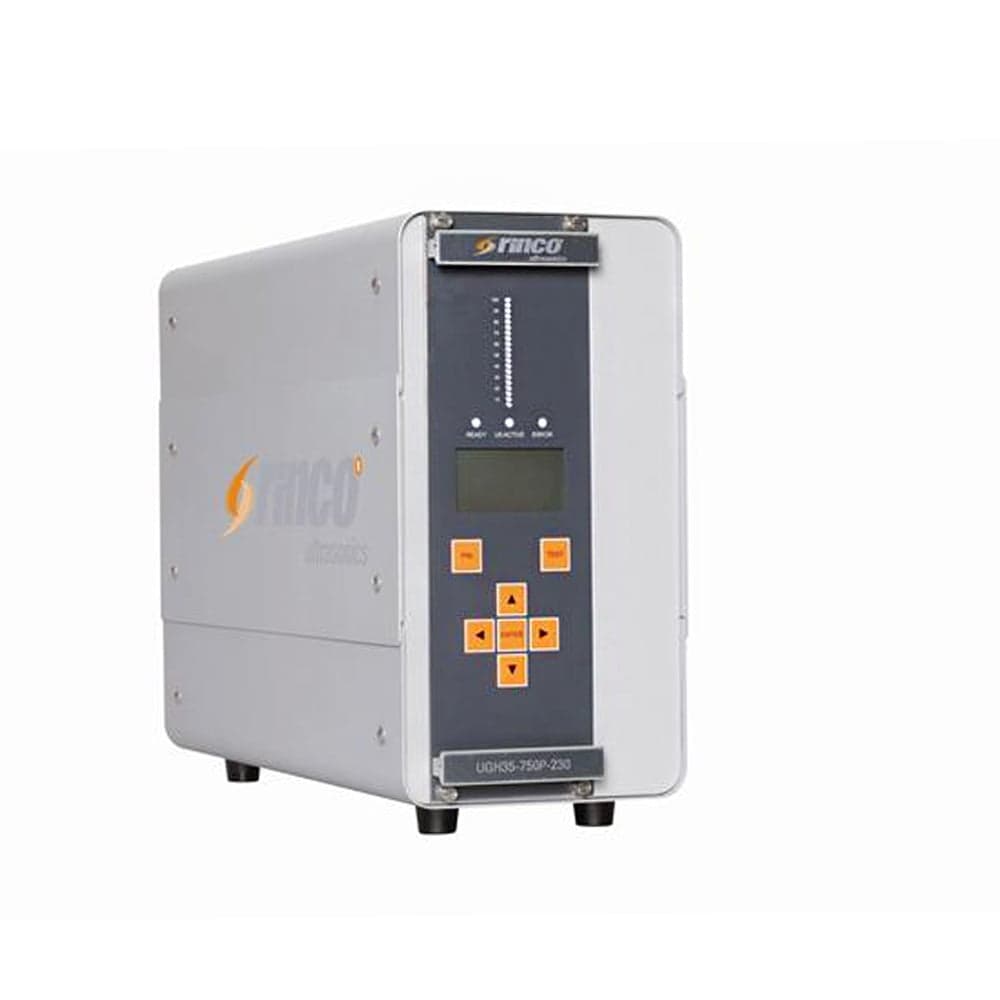

70 kHz01 / 01Click to expand ⤢Digital ultrasonic generator · Ultrasonic Generators
ADG Generator
Analogue-simple digital generator for dependable stand-alone operation.
The ADG is Rinco's straightforward digital generator: set it, connect the stack, and weld. Automatic frequency tracking and stable amplitude control in a robust housing, for hand units and simple stations that don't need deep process interfaces.
- Operating frequency
- 70 kHz / 35 kHz / 20 kHz
- Operating modes
- Time dependant, energy dependant, travel dependant, continuous, contact cut-off
- Communication and interfaces
- RS232, Digital I/O
- Amplitude
- Adjustable 40 – 100%, changeable in 1% increments
- Weight
- 16 kg
Defining features
- User-friendly menu navigation
- RS232 serial interface enables data transfer for the external logging of the welding data
- Simple adaptation to special purpose machines
- Made in Switzerland
Technical specifications
| Operating frequency | 70 kHz / 35 kHz / 20 kHz |
|---|---|
| Operating modes | Time dependant, energy dependant, travel dependant, continuous, contact cut-off |
| Communication and interfaces | RS232, Digital I/O |
| Amplitude | Adjustable 40 – 100%, changeable in 1% increments |
| Weight | 16 kg |
