20 kHz01 / 03Click to expand ⤢Ultrasonic welding press · Standard Series

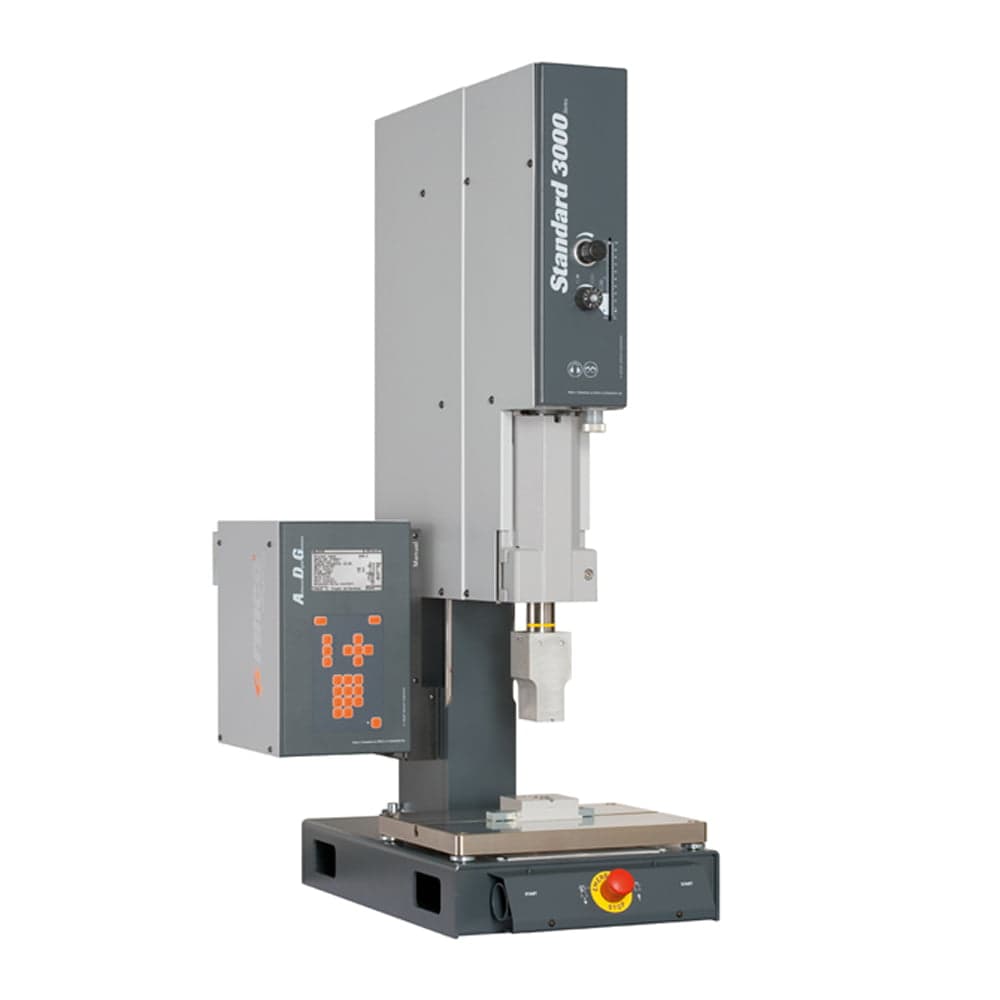

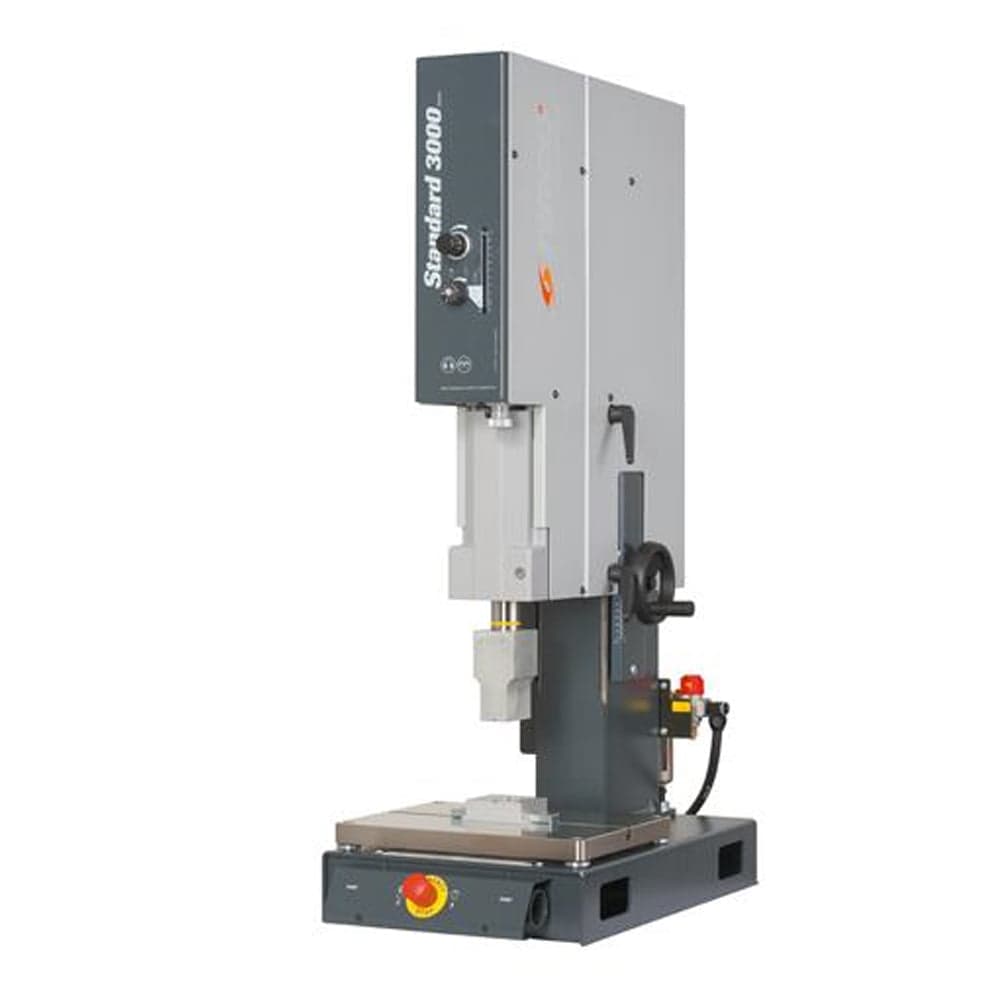

Standard 3000
The 20 kHz production workhorse — 3000 N of pneumatic welding force, day in, day out.
The Standard 3000 is Rinco's proven 20 kHz pneumatic press for everyday production welding of larger thermoplastic parts. A rigid C-frame, precise pneumatic actuation and straightforward setup deliver repeatable weld quality across automotive, appliance and general plastics manufacturing.
Defining features
- Can be housed in sound enclosures SSK
- Suitable for integration into special purpose machines
- High process reliability
- Repeatable welding force
- Simple tool change and quick setup
- Integrated travel measurement with accuracy of ± 0.01 mm
- Operating frequency: 20 kHz
- Conforms to CE standards and corresponds to European safety requirements
- Maximum force: 3000 N at 6 bar compressed air
- Maximum stroke: 100 mm
- Weight: 115 kg without Generator
- Generator suitability: ACU20-2000/3000
Related equipment
Applications support · New Zealand
Put the Standard 3000 on your line
Send us your part, your material and your production target. Techspan's engineers will recommend the right Rinco machine, tooling and process — with trials where it matters.
