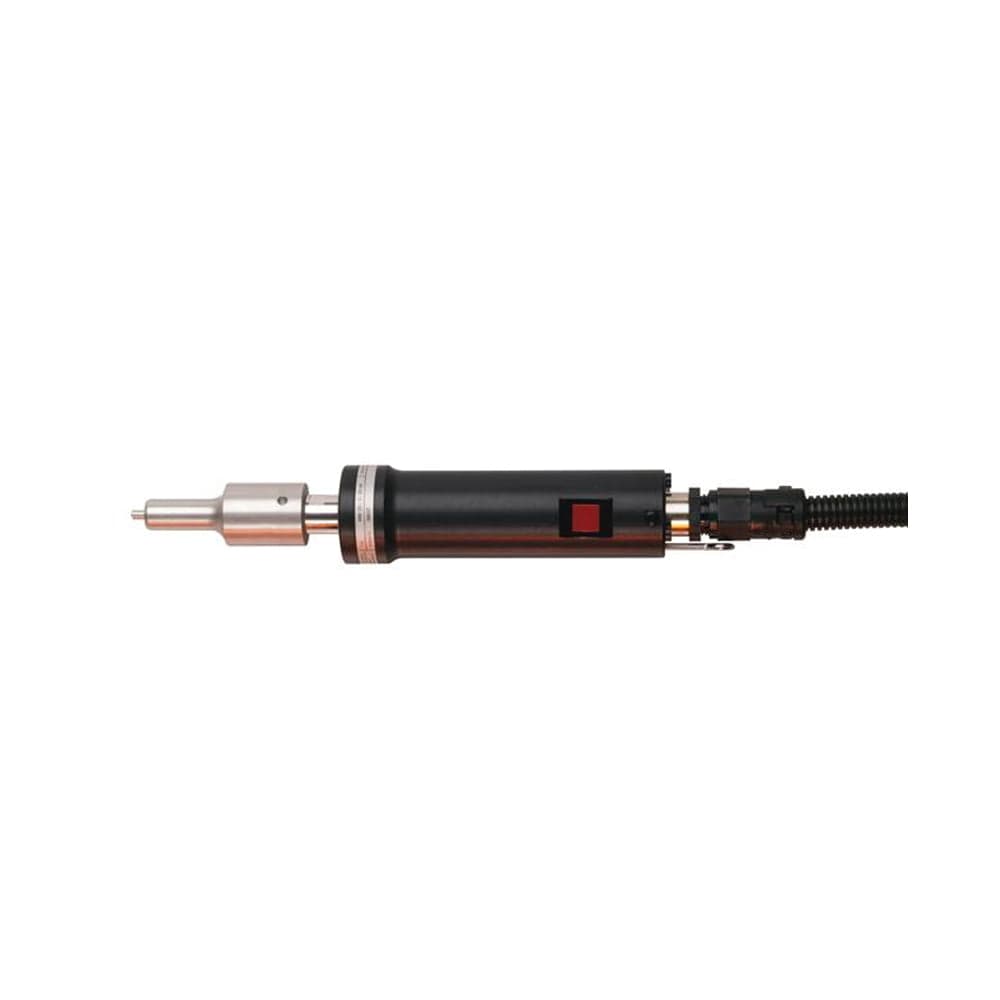

35 kHz01 / 01Click to expand ⤢Hand-held ultrasonic welder · Ultrasonic Hand Units
HG 35-EC / HG 35-RS
35 kHz hand welder variants with Ecoline kit and RS-interface control options.
The HG 35-EC and HG 35-RS extend the HG 35 platform: the EC pairs with the economical Ecoline generator kit, while the RS adds interface control for integration into stations and simple automation. Same 35 kHz Rinco weld quality either way.
Defining features
- Operating frequency : 35 kHz / 35 kHz
- Weight : 600 g including converter / 600 g including converter
- Amplitude : 40 – 100 % / 40 – 100 %
- Amplitude amplification : Directly through converter / Directly through converter (not included)
- Operating modes : Continuous, RDG: Continuous, SDG: Continuous, time mode, energy mode,
- Compatible generators : Ecoline35 / RDG35, SDG35 /
- Made in Switzerland
