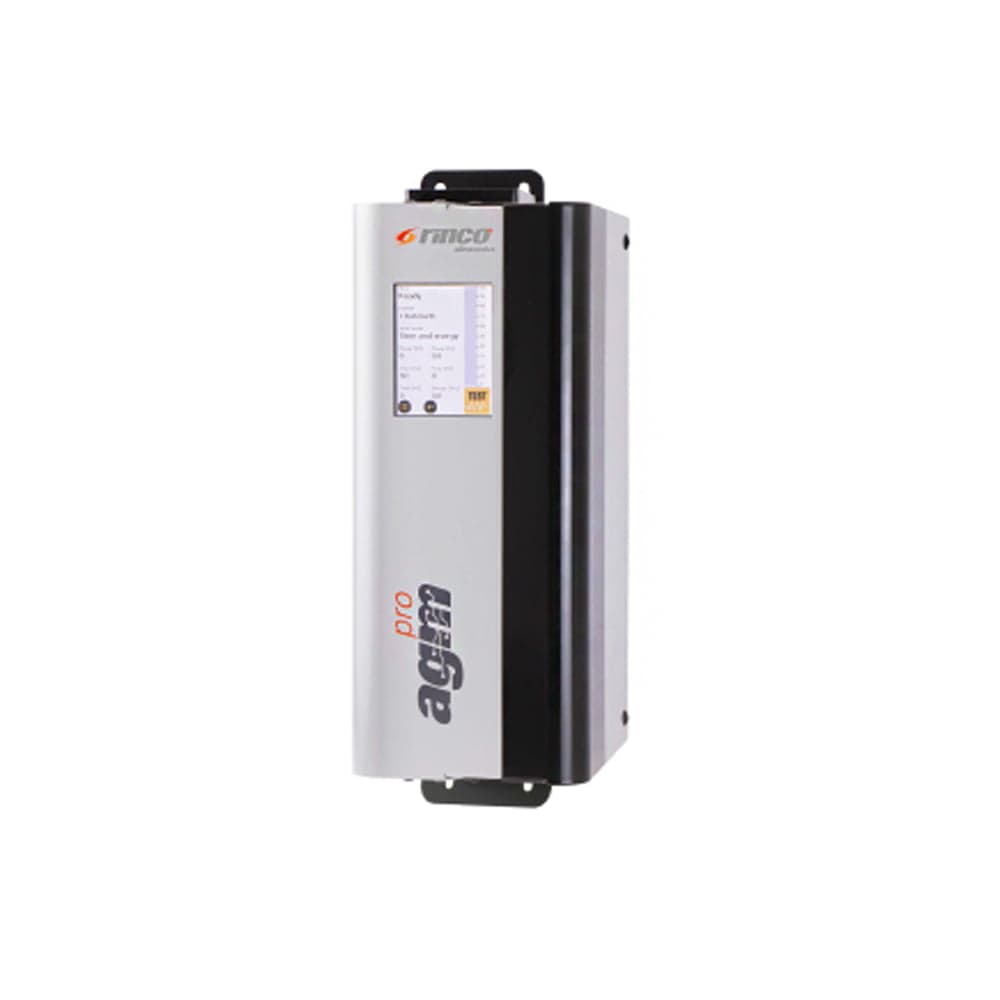

AGM PRO Generator Module
The advanced OEM module — more power, more control, more connectivity.
The AGM PRO extends the AGM concept with more output, finer process control and richer interfaces — the module for OEMs and integrators building serious ultrasonic capability into special machines and production equipment.
- Operating frequency
- 20 kHz, 30 kHz, 35 kHz, 40 kHz or 70 kHz
- Operating modes
- Time mode, Energy mode, Time and Energy mode, Time or Energy mode, Continuous, Contact cut-off
- Communication and interfaces
- PROFINET*, PROFIBUS*, DeviceNet*, EtherNet/IP*, EtherCAT*, CANopen*, RS485, Digital inputs and outputs, Analogue inputs and outputs, *As interchangeable module
- Amplitude
- Adjustable 15 - 100 %, changeable in 1 % increments
- Weight
- 4 kg
Defining features
- Industry 4.0 compatible
- Slime design
- Touch display
- Easy integration to special purpose machines
- Optimised cooling
- Made in Switzerland
Technical specifications
| Operating frequency | 20 kHz, 30 kHz, 35 kHz, 40 kHz or 70 kHz |
|---|---|
| Operating modes | Time mode, Energy mode, Time and Energy mode, Time or Energy mode, Continuous, Contact cut-off |
| Communication and interfaces | PROFINET*, PROFIBUS*, DeviceNet*, EtherNet/IP*, EtherCAT*, CANopen*, RS485, Digital inputs and outputs, Analogue inputs and outputs, *As interchangeable module |
| Amplitude | Adjustable 15 - 100 %, changeable in 1 % increments |
| Weight | 4 kg |
