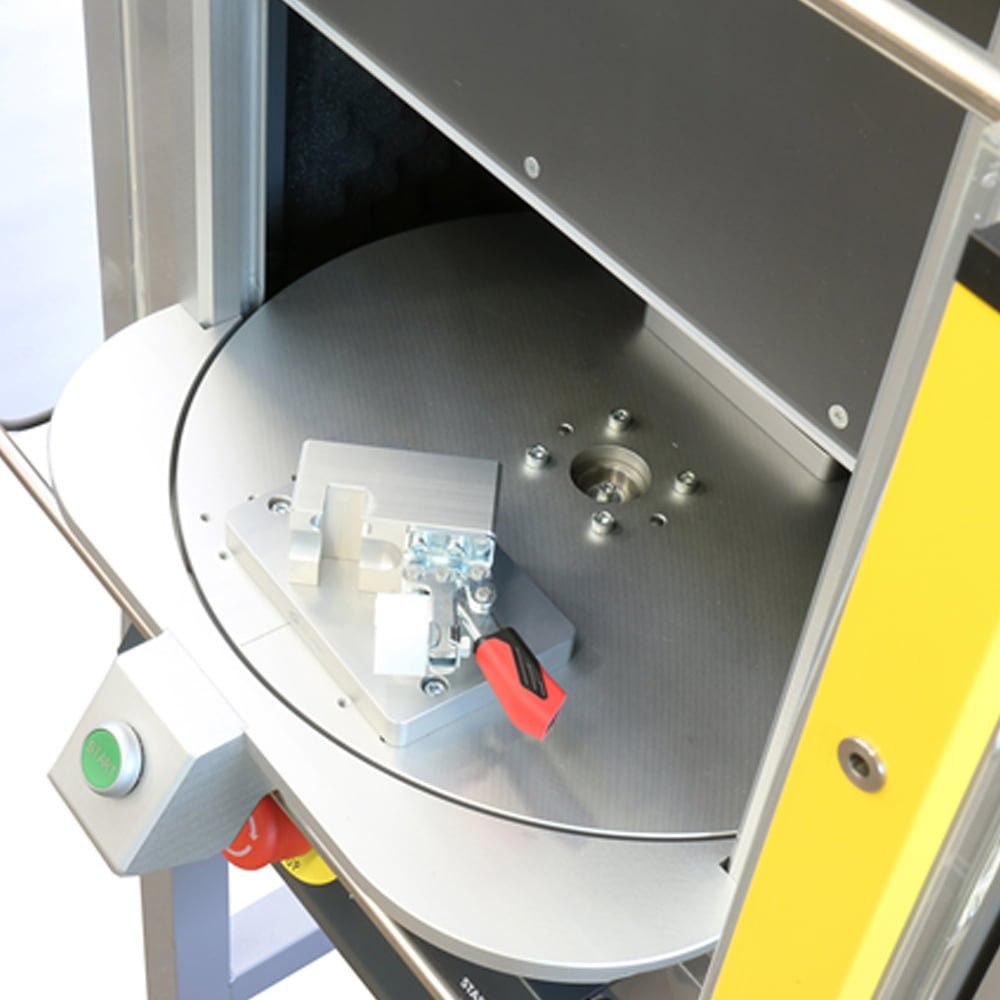

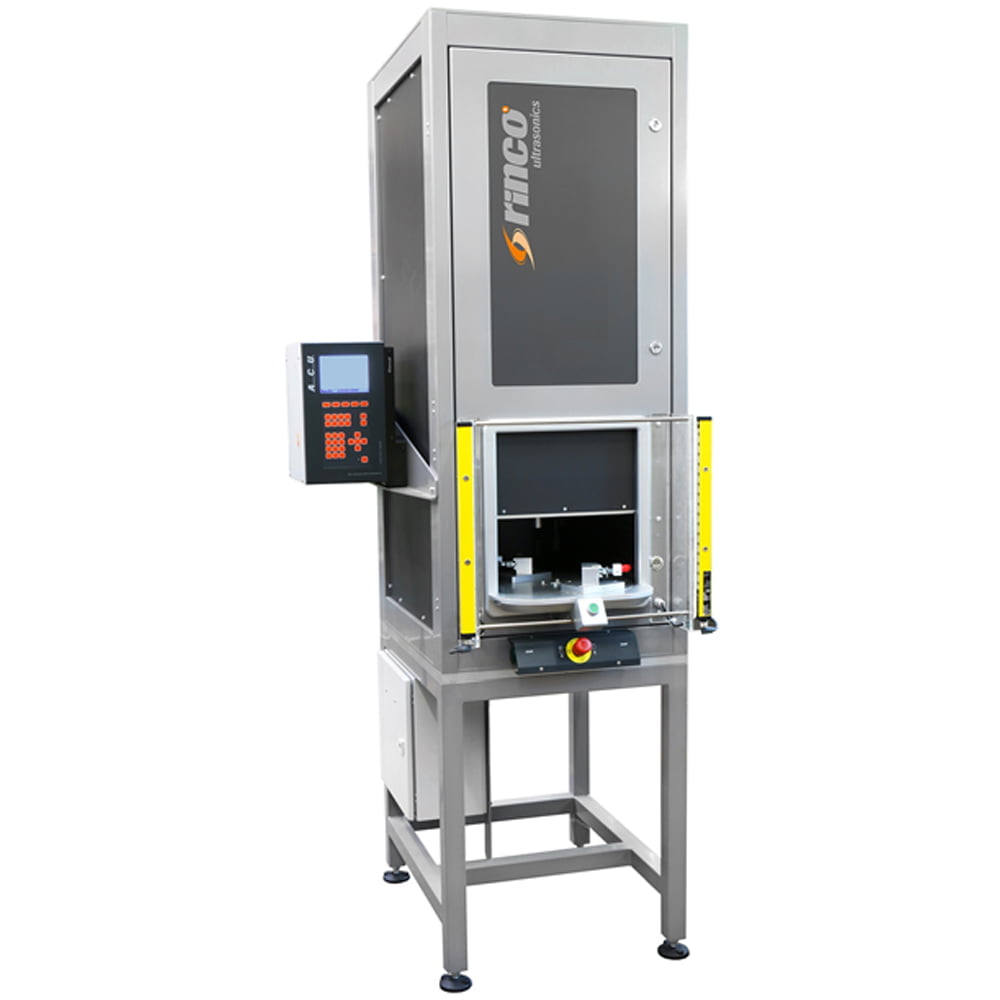

Rinco Ultrasonics – Work Station / Sound Enclosure with Rotary Table –
The Rinco workstation with rotary table can be used together with the following ultrasonic welders – Dynamic 3000, Dynamic 745, Standard 3000 and Standard 745. Ideal for use whenever the sound emitted from the process is too high, as it houses the ultrasonic welder inside a sound insulated Sound Enclosure.
Defining Features:
- Easy integration and operation
- Ultrasonic welding press and sound enclosure rolled into one
- Massive noise reduction, no hearing protection required
- Short production cycles

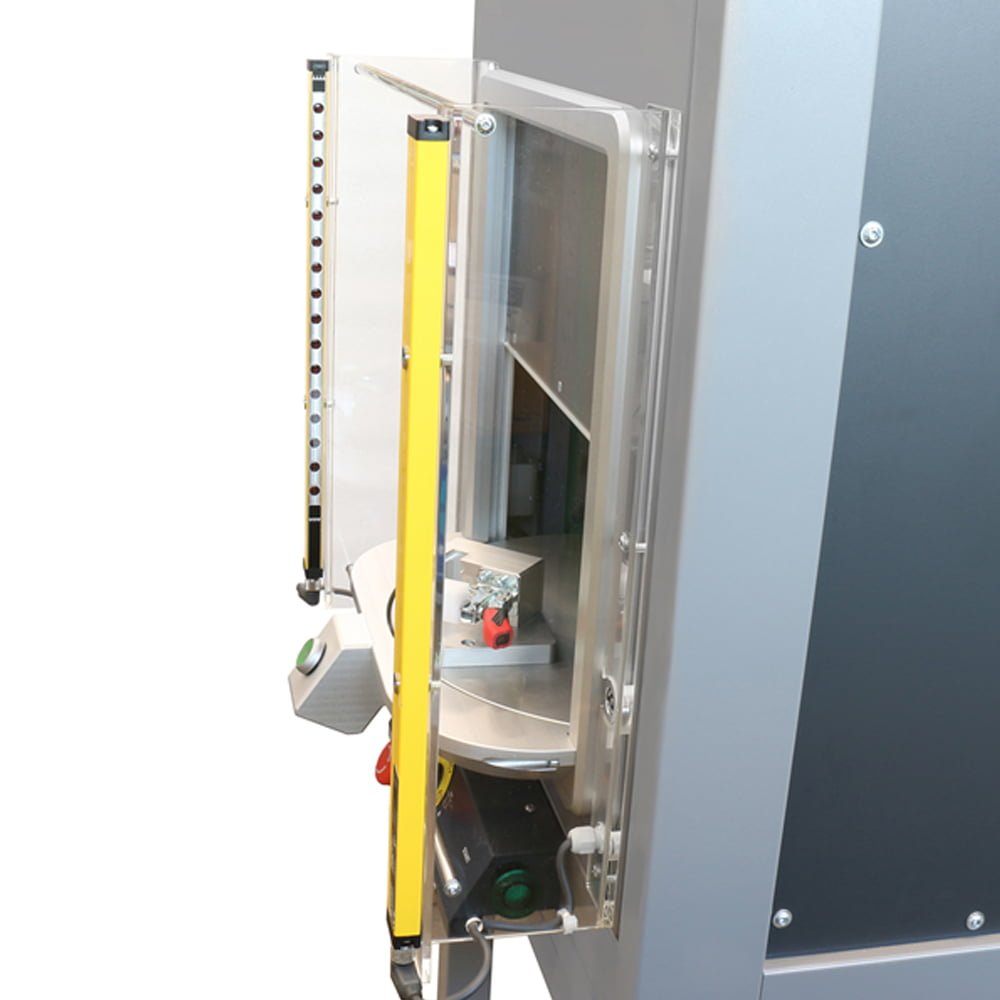

- Improved safety for operators and persons in the vicinity thanks to light barrier
- Ergonomic workplace thanks to adjustable height
- Slim design
- Easy to handle with forklift
- Conforms to highest safety standards
Technical Specifications:
- Operating frequency: 20 kHz / 35 kHz
- Conforms to CE standards and European safety requirements
- Switches: START button
- Weight: Workstation: 170 kg, incl. press and generator: approx. 230 – 300 kg
- Suitable for Press Welders: Dynamic 3000, Dynamic 745, Standard 3000, Standard 745
Documents
Brochure Rinco Ultrasonics Workstation Sound Enclosure with Rotary Table
