Description

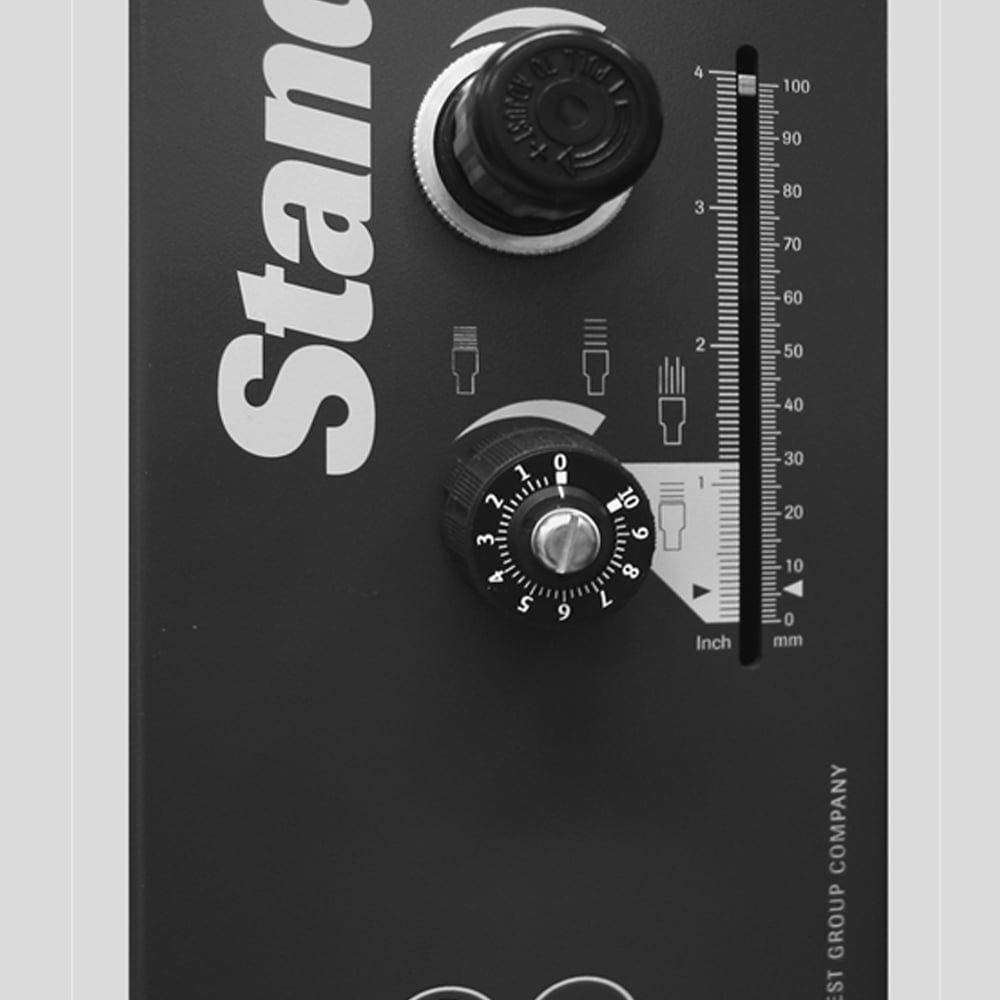

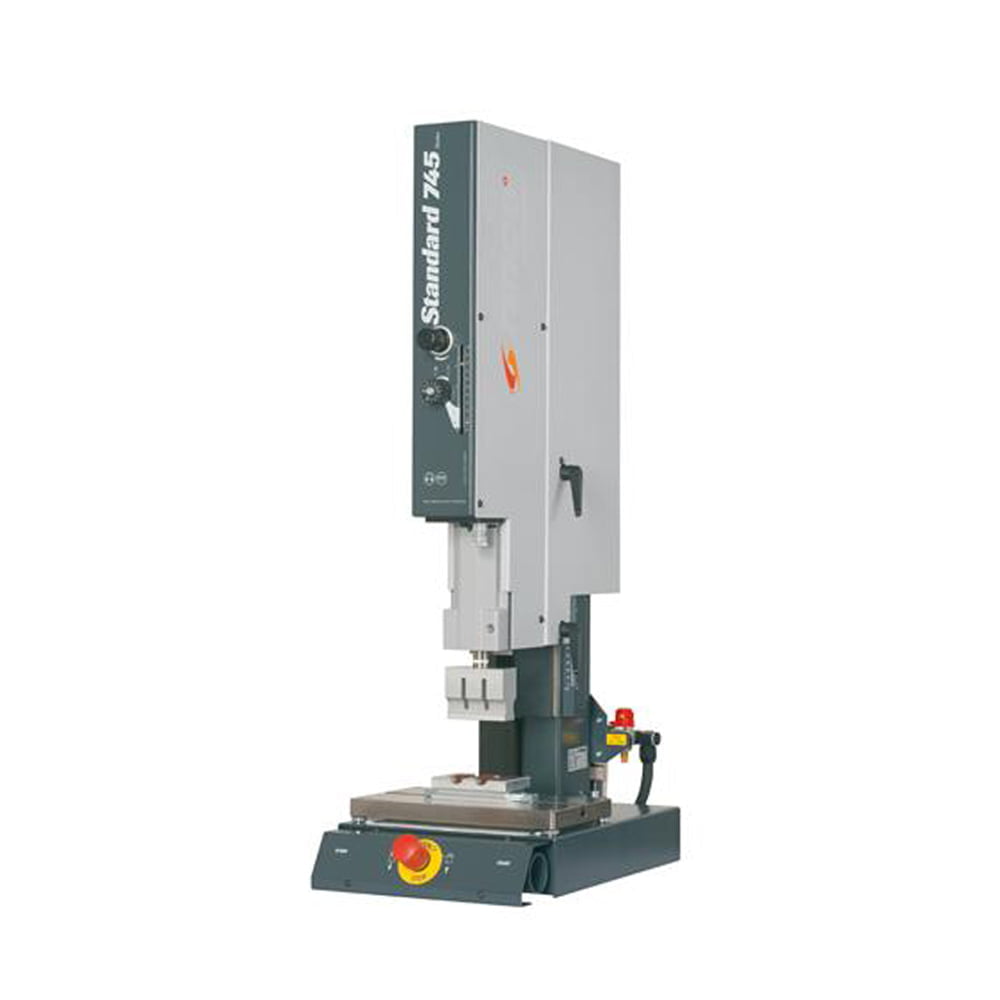

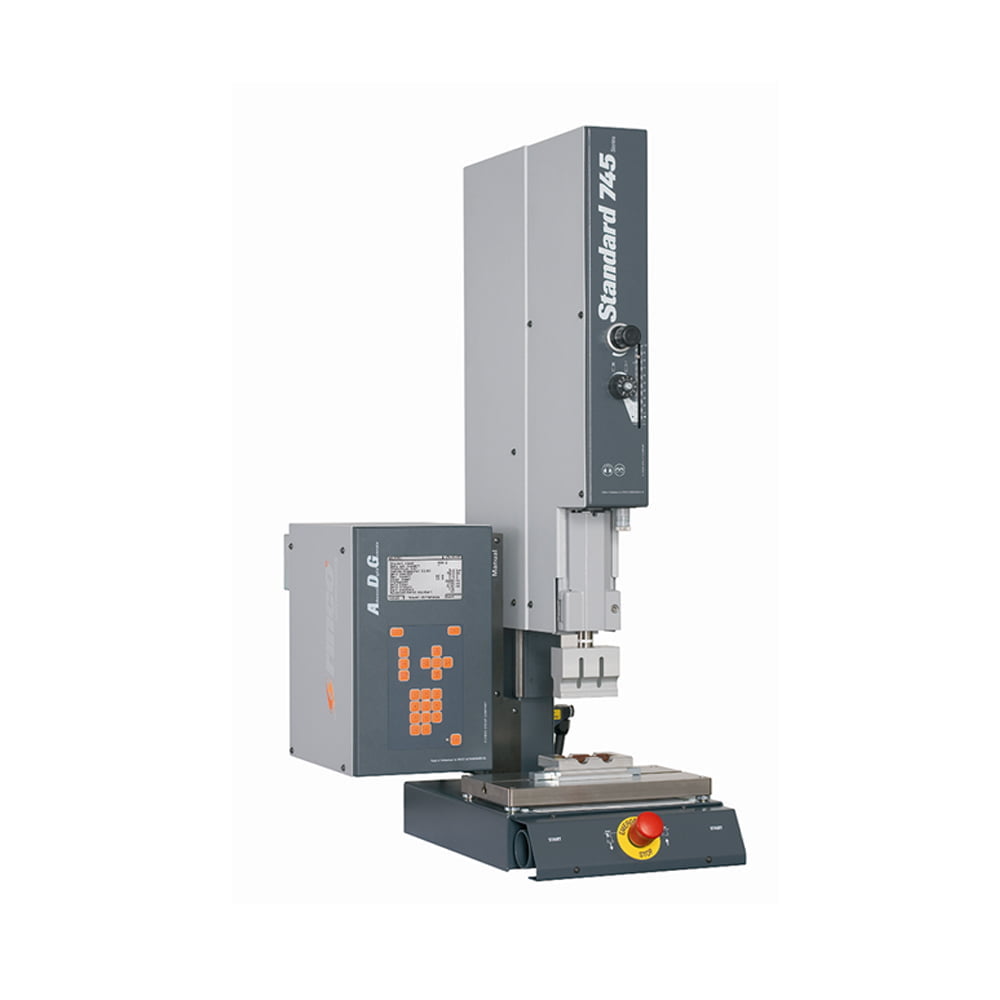

Ultrasonic Welder model Standard 745 –
The Standard 745 Series Ultrasonic Welder is suitable for welding operations for thermoplastic parts from small to medium sizes.
Defining Features:
- Compatible for integration into special purpose machines
- High process reliability
- Repeatable welding force
- Simple tool change and quick setup
- Integrated travel measurement with accuracy of ± 0.01 mm
Technical Specifications:
- Operating frequency: 35 kHz
- Conforms to CE standards and European safety requirements
- Maximum force: 745 N at 6 bar compressed air
- Maximum stroke: 100 mm
- Weight: 40 kg without Generator

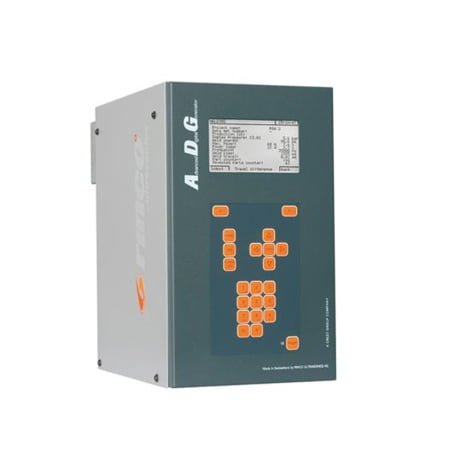

- Generator suitability: ADG35-400/600/900
Documents
Brochure Rinco Ultrasonics Standard 745
