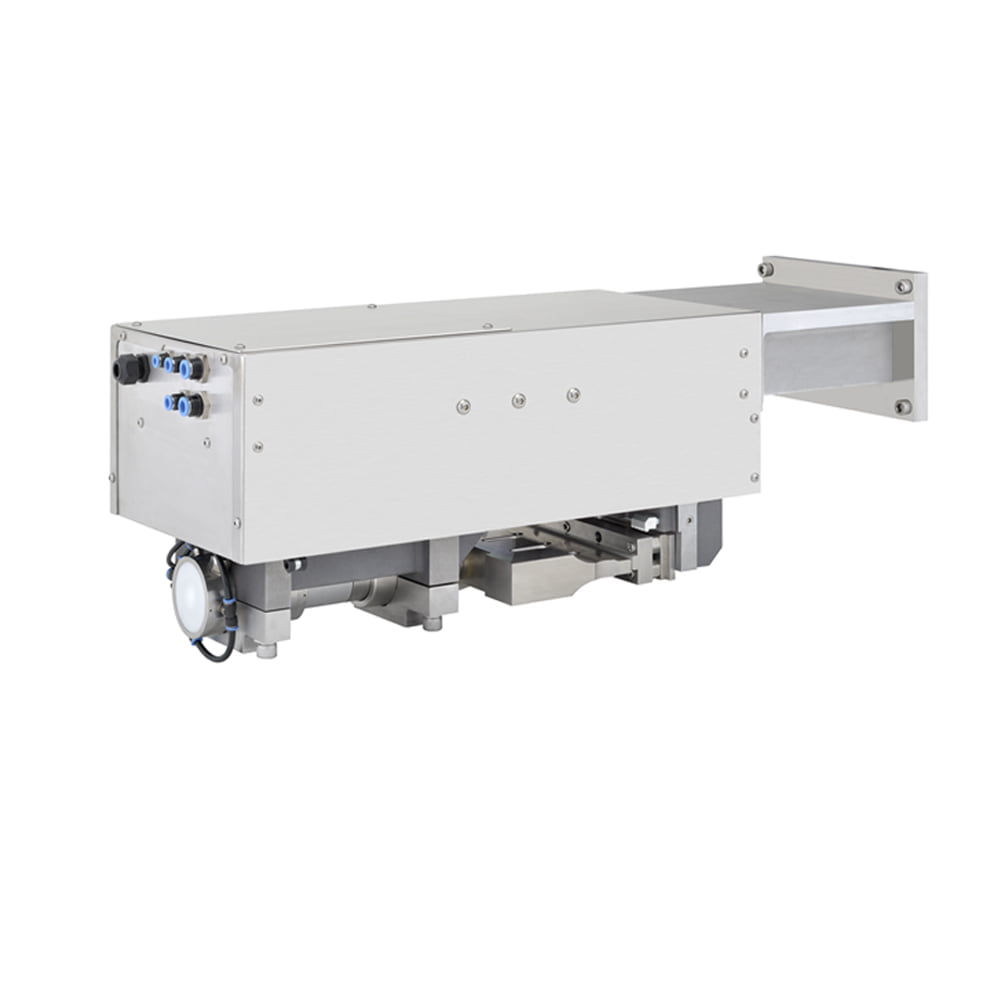

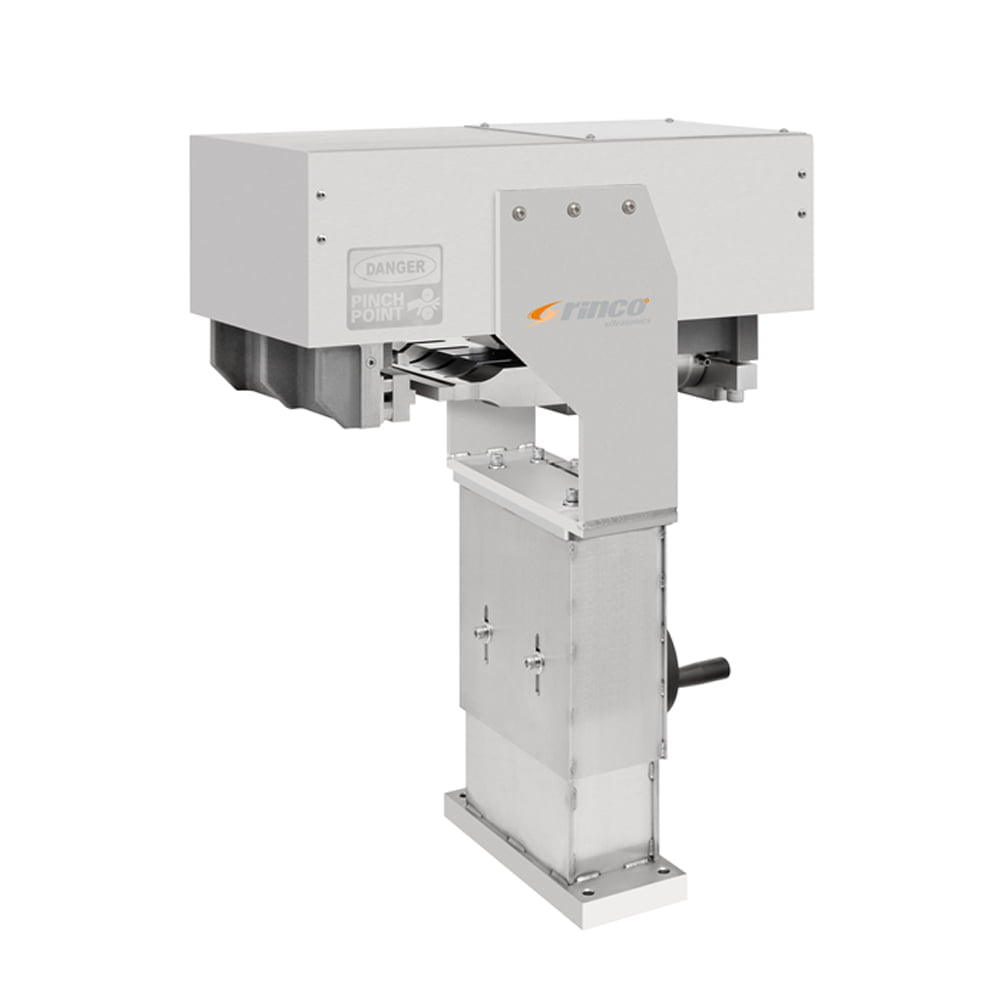

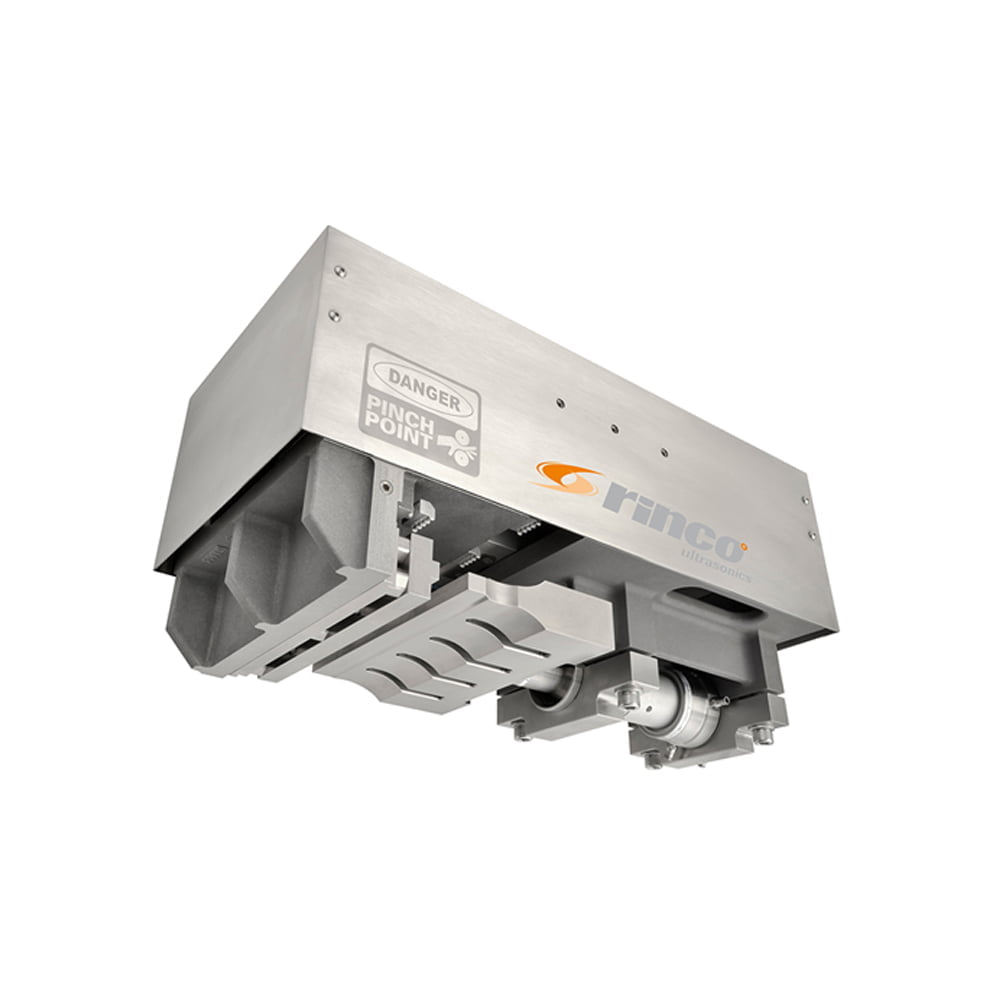

Ultrasonic Actuator FPA4500 –
The FPA 4500 flexible packaging actuator is suitable for sealing small, medium and large thermoplastic bags.
Defining Features:
- Suitable for all FFS machines (form fill seal)
- Very robust design
- 100 % digital
- IP67 certified
- Retrofit kit to upgrade from heat sealing to ultrasonic sealing available
- Integrated air cooling
- Patented RINCO seal technology
- Exceptional tool technology
- GenParam configuration software
Technical Specifications:
- Operating frequency: 20 kHz
- Safety aspects: CE-compliant meets European safety requirements
- Maximum force: 2500 N
- Maximum tool stroke: 50 mm
- Weight: 36 kg (actuator only)
- Generator suitability: AGM20-3000
