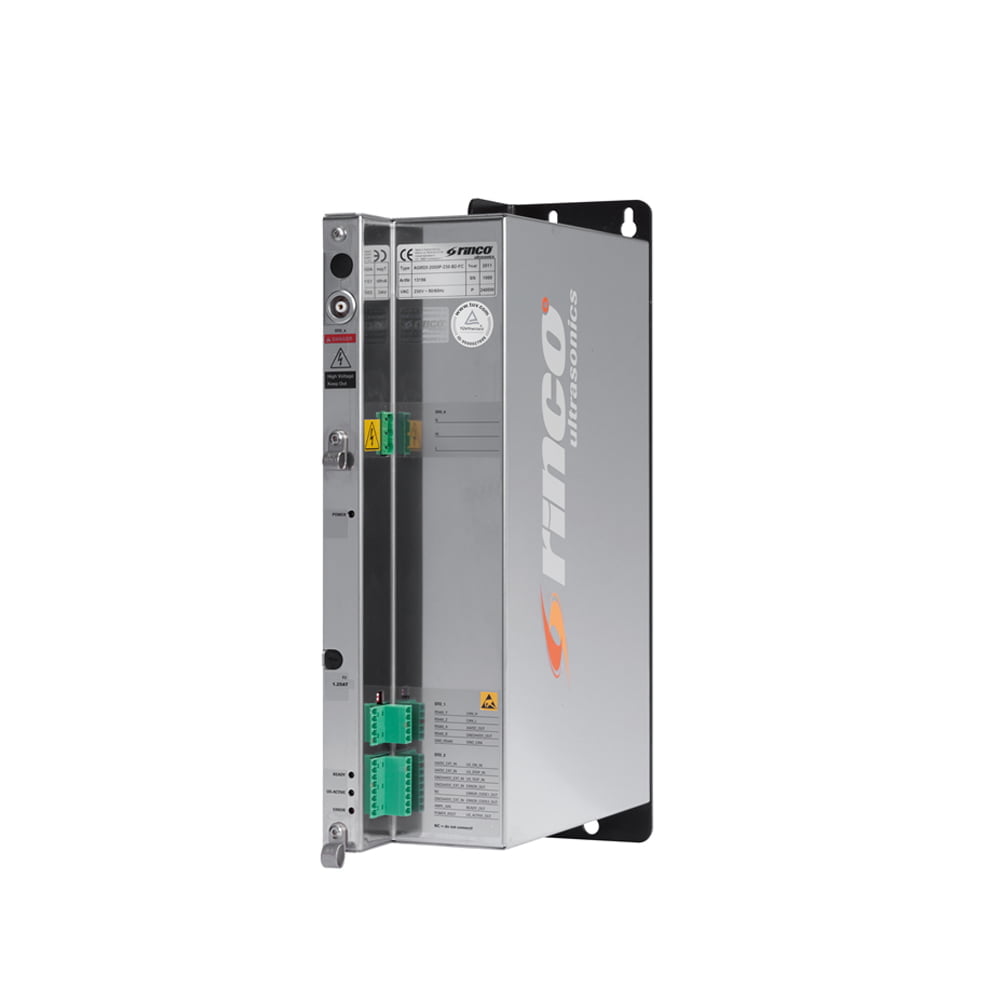

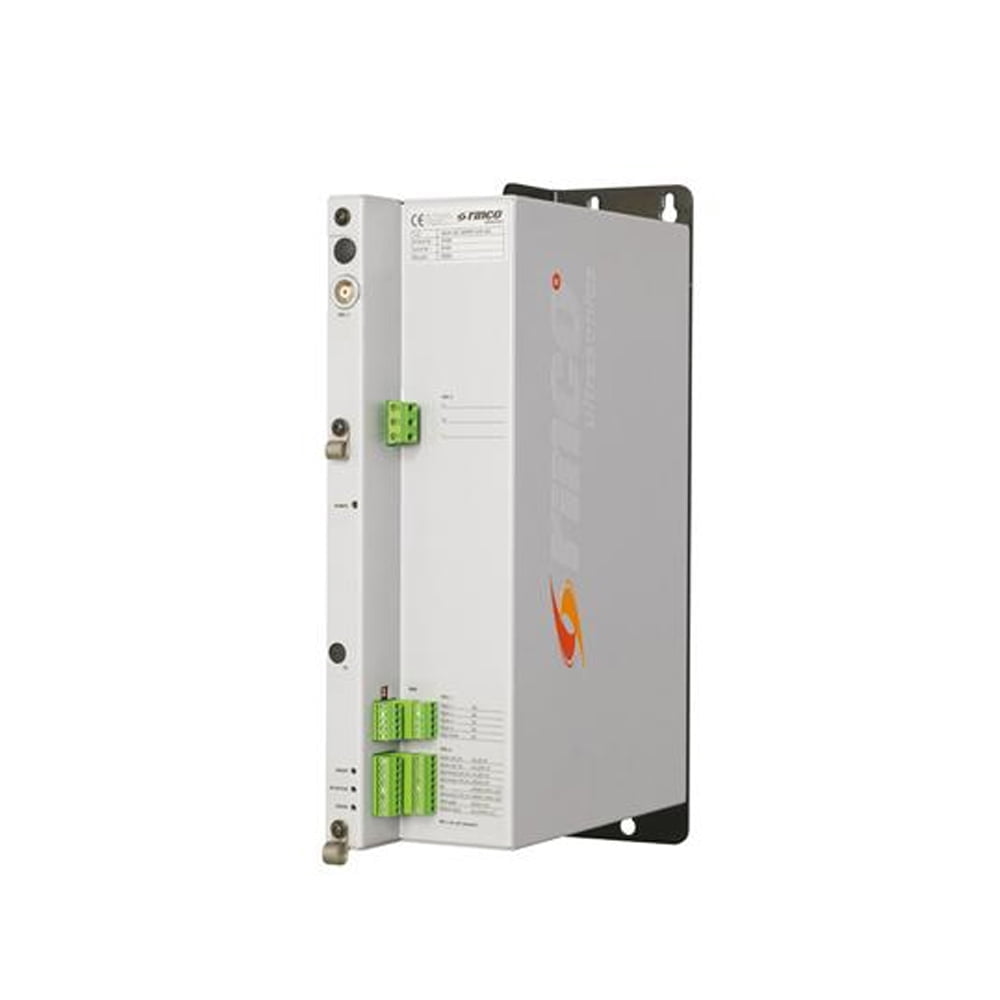

Ultrasonic Generator Module model AGM
The ultrasonic welding generator AGM is designed for integration into special purpose machines.
Defining Features:
- For integration into special purpose machinery
- All control tasks and parameter input via external controller
- Data transfer by bus compatible interfaces
- Digital inputs and outputs for controller
- Digital error coding
- Space saving side by side mounting in control cabinet
- Made in Switzerland
Technical Specifications:
- Operating frequency: 70 kHz / 40 kHz / 35 kHz / 30 kHz / 20 kHz
- Operating modes: Time dependant, energy dependant, continuous, contact cut-off
- Communication and interfaces: RS485; CANopen
- Process control: Digital inputs and outputs (24VDC); analogue inputs and outputs (0 – 10VDC); RS485; CANopen
- Weight: AGM70: 5.5 kg; AGM35: 6.0 kg; AGM30: 6.0 kg; AGM20: 6.5 kg
- Options: Parameterization software; line filter; ventilator filter; several ventilators
