Description

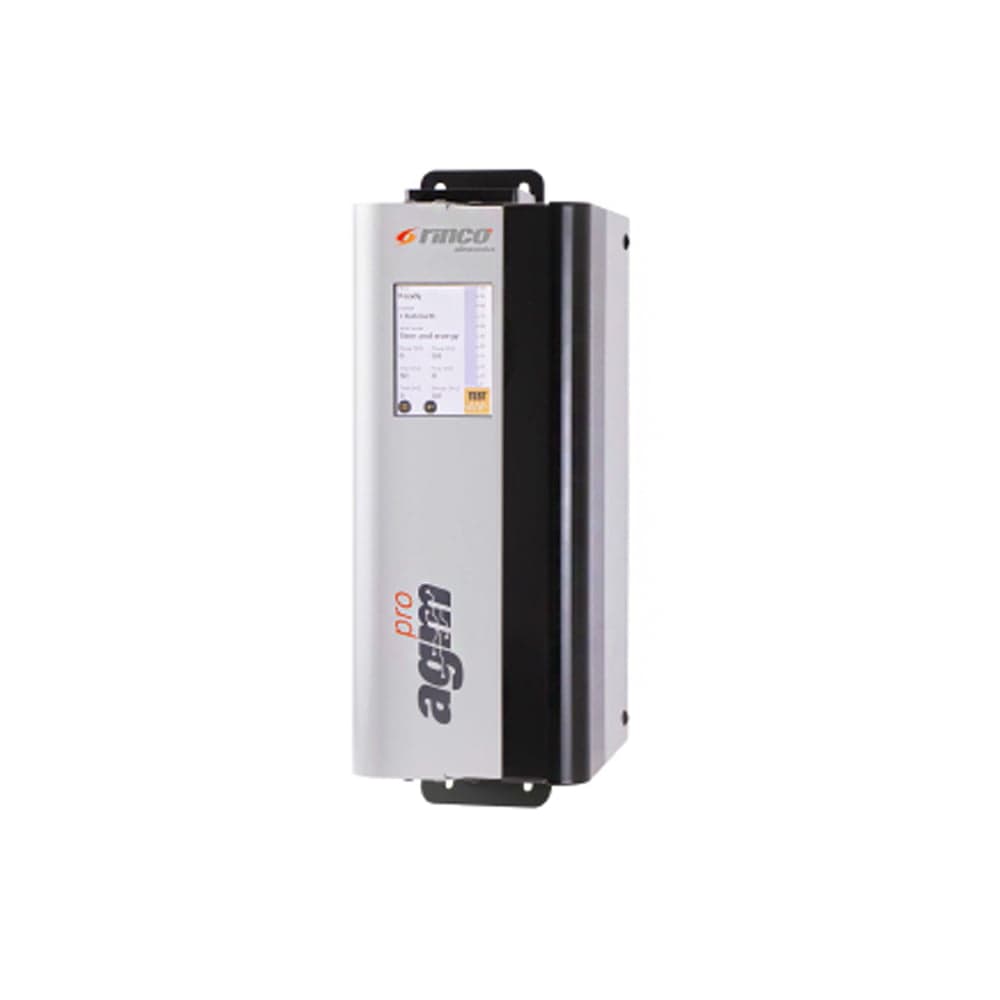

Ultrasonic generators from the AGM Pro series are designed for installation in automated lines, special-purpose machines and automated welding systems. They are able to cope with demanding welding and cutting tasks such as ultrasonic welding of thermoplastics and moulded parts, plus ultrasonic cutting of non-woven materials and technical textiles or foodstuffs including cheese, wraps and cakes. Thanks to their slim design, they can be incorporated into small spaces in electrical cabinets. They are also equipped with an optimised cooling system.
Defining Features:
- Industry 4.0 compatible
- Slime design
- Touch display
- Easy integration to special purpose machines
- Optimised cooling
- Made in Switzerland
Technical Specifications:
- Operating frequency: 20 kHz, 30 kHz, 35 kHz, 40 kHz or 70 kHz
- Operating modes: Time mode, Energy mode, Time and Energy mode, Time or Energy mode, Continuous, Contact cut-off
- Communication and interfaces: PROFINET*, PROFIBUS*, DeviceNet*, EtherNet/IP*, EtherCAT*, CANopen*, RS485, Digital inputs and outputs, Analogue inputs and outputs, *As interchangeable module
- Amplitude: Adjustable 15 – 100 %, changeable in 1 % increments
- Weight: 4 kg
